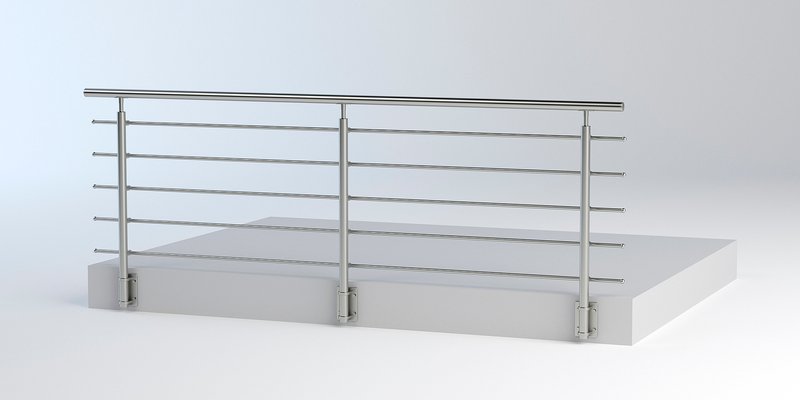

1. Platform Railing
| Item | Specification |
| Material | Q235 Carbon Steel / Q355B Low-Alloy Steel / 304/316 Stainless Steel / 6063 Aluminum Alloy |
| Surface Finish | Hot-Dip Galvanized (≥80μm) / Electrostatic Powder Coating (RAL Colors) / Polished & Brushed |
| Height | 900mm, 1100mm, 1200mm (1100mm is standard for industrial platforms) |
| Post Spacing | ≤1200mm (adjustable based on load requirements) |
| Rail/Post Section | Square Tube: 40×40mm, 50×50mm, 60×60mm; Round Tube: φ42mm, φ48mm, φ60mm |
| Toe Board | Standard height 100~150mm, thickness ≥2mm, prevents tools/objects from falling |
| Load Capacity | Horizontal thrust ≥1.5kN/m, Top concentrated load ≥1.0kN |
| Applicable Standards | OSHA 1910.29, GB 4053.3, EN 13374 Class A/B |
| Connection Method | Bolted Connection / Welded Fixing / Embedded Parts Installation |

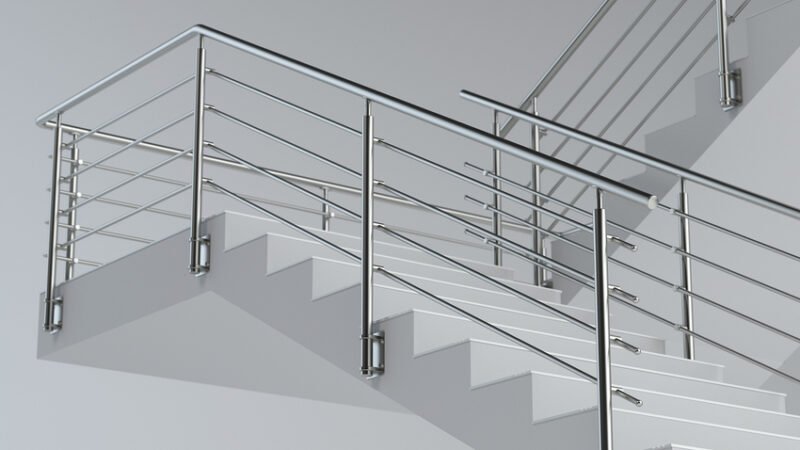

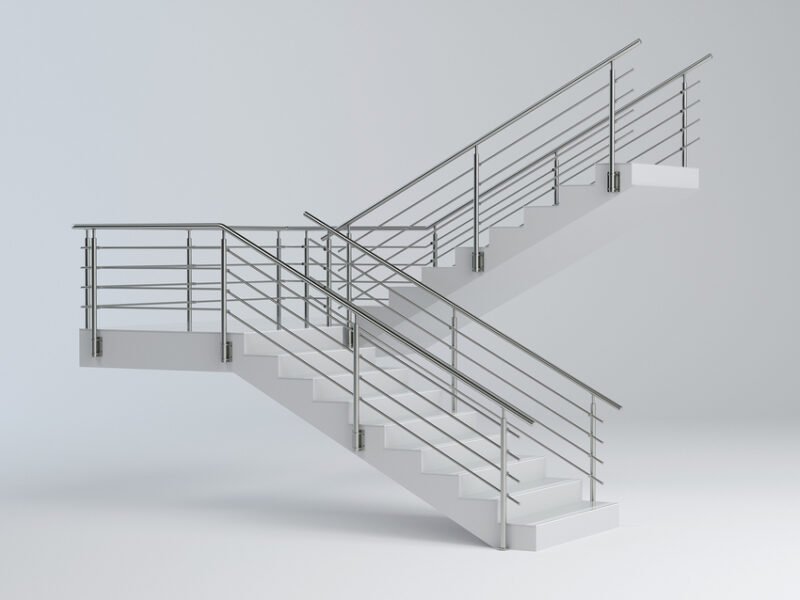

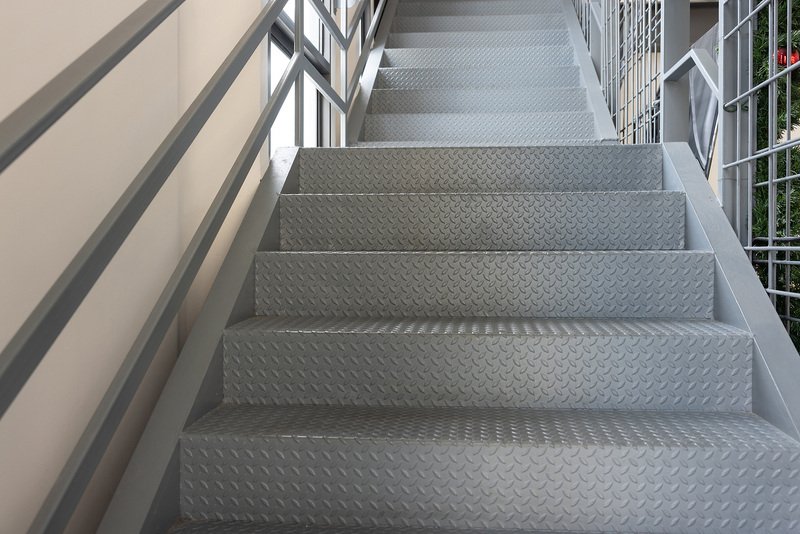

2. Stair Handrail
| Item | Specification |
| Material | 304/316 Stainless Steel (Brushed/Mirror) / Powder-Coated Carbon Steel / Aluminum Alloy (Anodized) |
| Handrail Height | ≥900mm measured from the tread nosing; ≥1100mm on landings |
| Handrail Diameter | φ32mm, φ38mm, φ42mm, φ50mm (ergonomic design) |
| Vertical Baluster Spacing | ≤110mm (child-proof) |
| Inclination Angle | Matches the stair slope (customizable from 30°~45°) |
| Elbow/Ends | Standard elbows and end caps, optional curved transitions |
| Surface Finish | Polished, Brushed, Sandblasted, Powder Coating |
| Applicable Standards | GB 4053.3, OSHA, AS 1657 (Australian Standard), BS 5395 |
| Installation Type | Side-mounted (wall) / Top-mounted (tread) |
3. Equipment Enclosure
| Item | Specification |
| Material | Hot-Dip Galvanized Steel / 304/316 Stainless Steel / Q235 Powder-Coated Carbon Steel |
| Enclosure Type | Welded Wire Mesh (50×50mm, 75×75mm grid) / Expanded Metal / Grating / Perforated Sheet |
| Post Section | Square Tube 80×80mm, 100×100mm; H-Beam; I-Beam |
| Height | 1200mm, 1500mm, 1800mm, 2200mm (customizable) |
| Door System | Lockable Single/Double Swing Doors, optional Hinged or Sliding Doors |
| Anti-Climb Design | Optional 45° top inclination or razor wire addition |
| Surface Finish | Hot-Dip Galvanized + Topcoat / Powder Coating / Galvanized + Powder Coating |
| Applicable Standards | GB/T 25851, ISO 14120, OSHA 1910.23 |
| Foundation Type | Embedded / Expansion Bolt Fixing / Mobile Base |
II.Advantages
| Selling Point | Description |
| Traceable Raw Materials | All materials sourced from mainstream mills like Baosteel, TISCO,Rizhao Material test certificates provided. |
| Extended Anti-Corrosion Life | Dual protection: Hot-dip galvanizing (≥80μm) + electrostatic powder coating. Outdoor service life ≥20 years, maintenance-free. |
| Modular Quick-Install Structure | Standard module design with bolted connections on-site, no welding required, increasing installation efficiency by 50%. |
| Multi-Standard Compliance | Simultaneously meets major international safety standards like OSHA, EN, GB, AS, suitable for global projects. |
| Precision Customization Capability | Supports non-standard sizes, special shapes, unique finishes. Fast sample turnaround within 7 days. |
III.Quality Assurance
| Stage | Assurance Measures |
| Quality Management | ISO 9001:2015 certified, fully controlled processes. |
| Incoming Material Inspection | Spectrometer analysis and thickness testing upon arrival to reject substandard materials. |
| Processing Precision | Laser/Plasma CNC cutting with error ≤±0.5mm; |
| Surface Treatment Check | Random thickness testing with coating thickness gauge; |
| Structural Testing | Batch sampling for impact resistance, load-bearing, and stability tests. |
| Product Traceability | Each product batch marked with production number and QC ID, traceable to the operator. |
IV.After-Sales Service
| Service Item | Details |
| Technical Documentation | Provides installation drawings, BOM lists, and user manuals. |
| Installation Guidance | Remote video guidance available; on-site technical assistance can be arranged (cost negotiable). |
| After-Sales Response | Free repair/replacement for quality issues within warranty period; 24-hour response time. |
| Spare Parts Supply | Long-term availability of matching spare parts for maintenance. |
V. OEM Customization Services
| Dimension | Customization Options |
| Material | Q235/Q355 Carbon Steel, 304/316 Stainless Steel, Aluminum Alloy, Weathering Steel |
| Size | Any height, width, pipe diameter, or mesh size |
| Surface Finish | Hot-Dip Galvanizing, Powder Coating (any RAL color), Wood Grain Transfer, Fluorocarbon Paint |
| Structure Type | Removable, Fixed, with Doors, with Anti-Climb, with Toe Boards |
| Branding | As customer’s request |
Customization Service Process:
- Requirement Discussion: Client provides application scenario, drawings, or ideas.
- Solution Design: We provide 3D structural drawings, load calculation reports
- Sample Confirmation: Sample completion within 3-5 days; client confirms and seals the sample.
- Mass Production: Production organized according to the confirmed plan, with progress updates.
- Delivery & Guidance: Timely delivery, provision of installation guidance or on-site service.
Whether used for Platform Railing, Stair Handrail, or Equipment Enclosure, our Handrail System is built on the core values of high safety, long lifespan, and flexible customization. We provide comprehensive protection solutions that meet international standards. For a detailed selection chart or a project-specific quotation, please provide the following information:
- Application scenario and required protection level
- Dimensional drawings or site photos
- Material and surface finish preferences
- Target execution standards (e.g., OSHA, GB, EN, AS)
We will tailor the most cost-effective solution for you.
